ML24Beam - 24 × 2" driver, 24 × 75 W + FIR DSP, SPL max. 125 dB, 3 beams, beamsteering ±60°, vertical opening angle 0° - 90°, Advanced Directivity Optimization, 2 × redundant analog inputs, wall mount

Harmonic Design

Kč 295.456,28

prices may have variations due to the currency fluctuation

prices may have variations due to the currency fluctuation

SKU: 400102
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.mom. Our office will contact you as soon as possible.

24 × 2" driver, 24 × 75 W + FIR DSP, SPL max. 125 dB, 3 beams, beamsteering ±60°, vertical opening angle 0° - 90°, Advanced Directivity Optimization, 2 × redundant analog inputs, wall mount

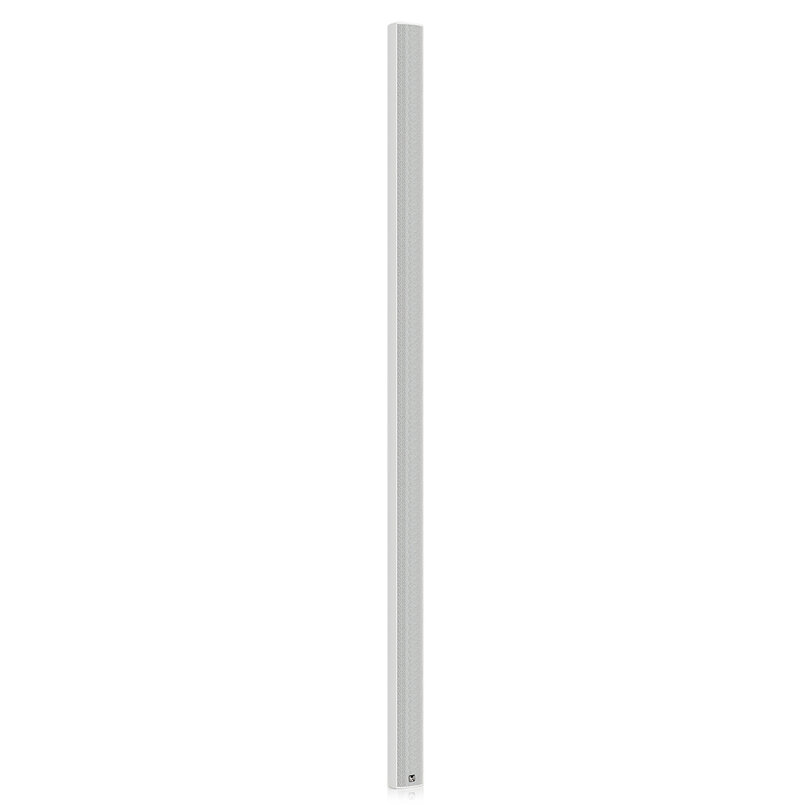

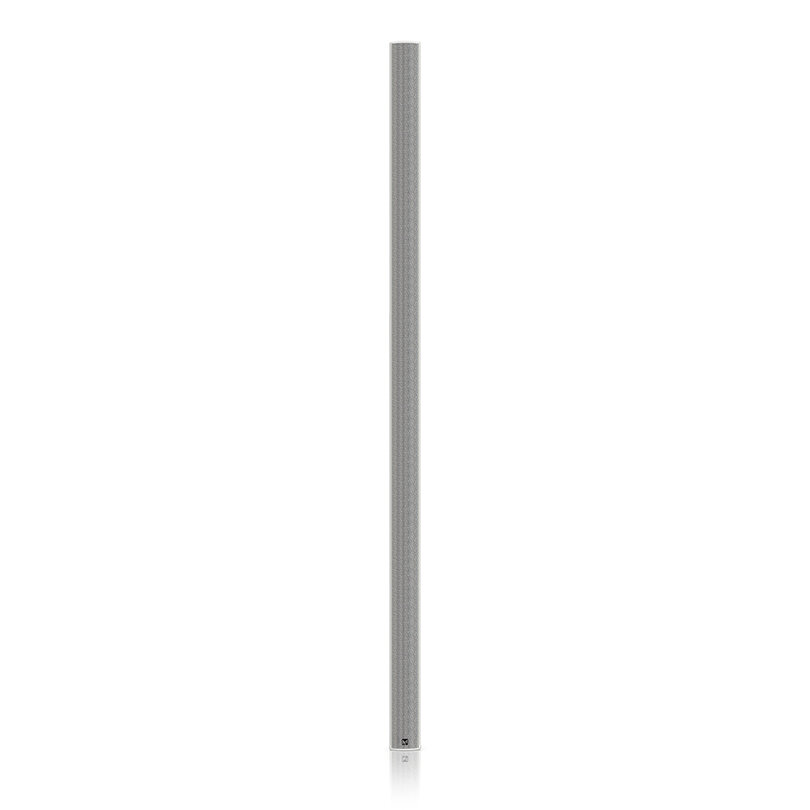

The HD ML24Beam is a column speaker that uses the latest beamsteering technology to offer versatile adjustment of the speaker's output to any type of room. This ensures optimal sound diffusion even in complex architecture and highly reverberant rooms.

The unique Harmonic Design Algorithm offers three separate main beams that can be individually treated and whose dispersion angle can be adjusted for a specific frequency. This results in significantly improved speech intelligibility and an excellent musical experience for every listener.

Using the intuitive HD LevelZ software, the sound field can be simulated and predicted to achieve the best possible result with the required units, without wasting time on testing or wasting money. The ultra-compact width of 80 mm makes the HD ML24Beam the narrowest beamforming speaker on the market and therefore visually unobtrusive in most fixed installations.

To ensure reliable and long-lasting operation, the electronics (75 W amplifier for each 2" speaker, DSP, etc.) are integrated into the speaker cabinet and optimally protected.

Areas of use

  • Restaurants
  • Bars
  • Airports
  • Railway stations
  • Home cinemas
  • Conference rooms
  • Hotels
  • A/V
  • Public buildings
  • Concert halls
  • Conferences
  • Media technology

Technical characteristics

  • Principle: cylindrical wave, active beamforming coloumn loudspeaker
  • Transducers: 24 × 2″ shielded fullrange drivers
  • Crossover active @ 110 Hz
  • Amplifier: 24 × 75 W, Class-D, digital control
  • Frequency range: 110 Hz – 20 kHz
  • Max. beam count: 4
  • SPL max.: 127 dB
  • Coverage nominal horizontal: 100°
  • Vertical beam tilt angle: ± 60°, in 0.1° increments
  • Vertical beam opening angle: 0° – 90°, in 0.1° increments
  • Features Advanced Directivity Optimization, Advanced Room Optimization, redundant input section with 2 × analog inputs and fallback algorithm

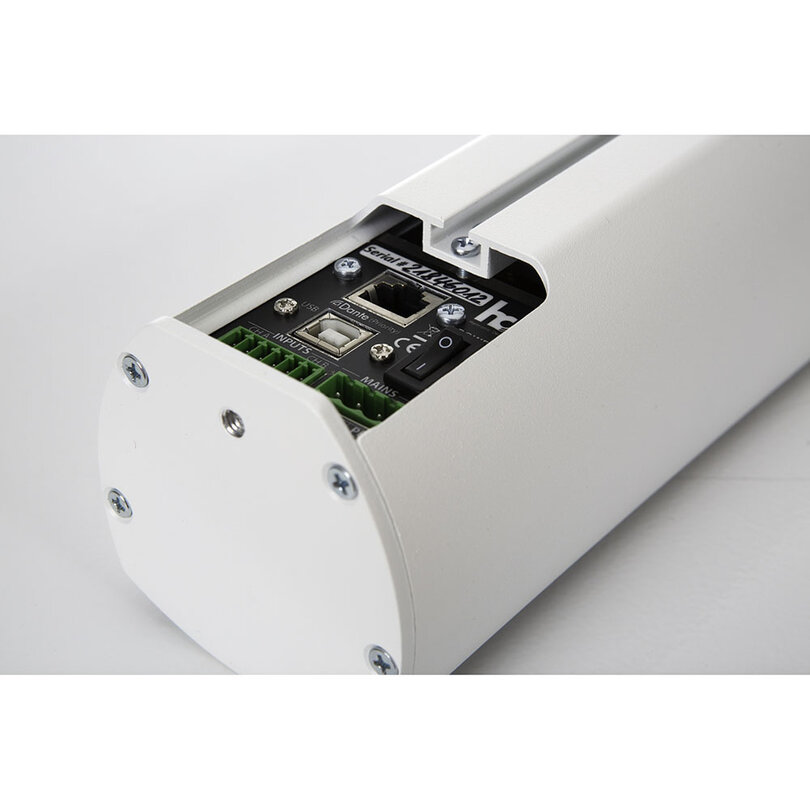

  • Connections Phoenix 3-pole mains, Phoenix 6-pole audio input, Dante Ethernet (optional), USB
  • Enclosure: powder-coated aluminium profile black (RAL 9005) or white (RAL 9010), steel grille with acoustic foam, 2 × M6 threads in top/bottom plate, rear connection panel

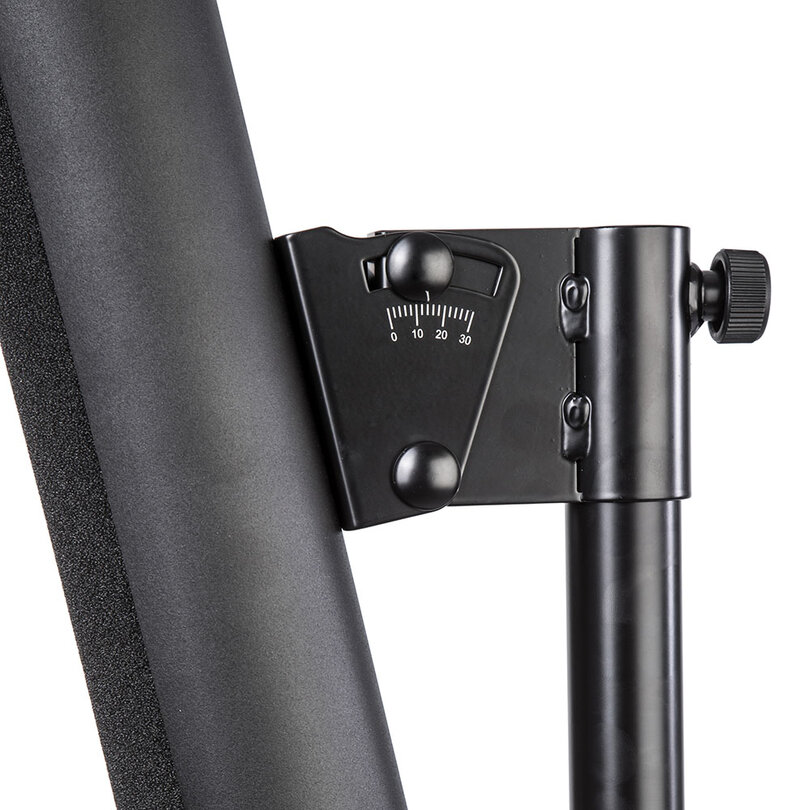

  • Options: Dante network module, multiple wall mount, tripod adapter, RAL color, special length
  • Dimensions (W x H x D): 8 × 299.8 × 7.8 cm
  • Weight: 16 kg
Harmonic Design

Kč 295.456,28

prices may have variations due to the currency fluctuation

SKU: 400102
Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.mom. Our office will contact you as soon as possible.
