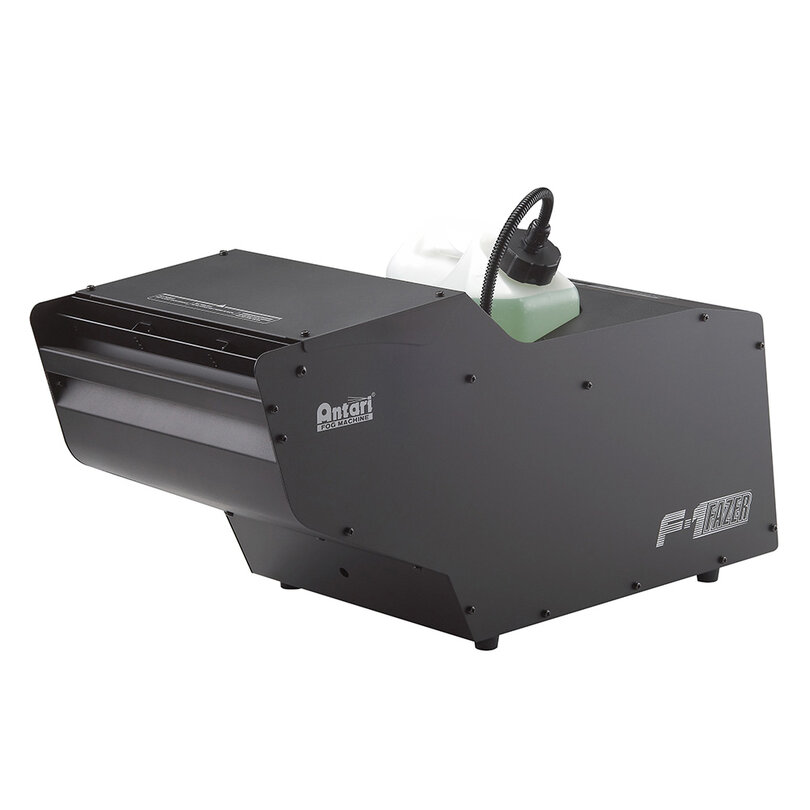

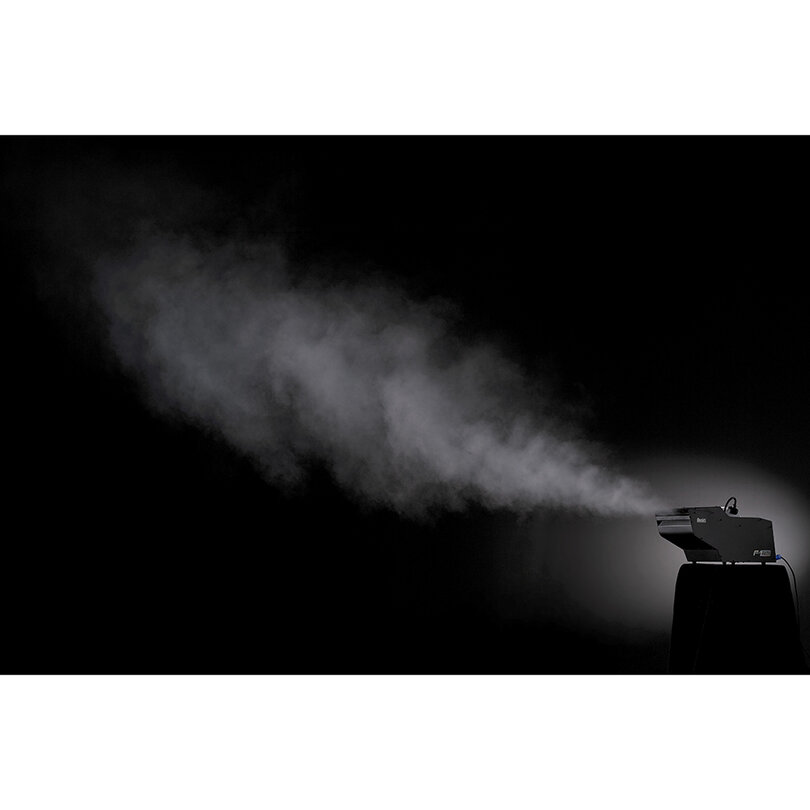

SKU: F-1eThe F-1 is a fazer designed to produce a fine, dry fog with minimal fluid consumption.
Equipped with an air pump system, it mixes the fog fluid (water based compatible) with air efficiently, for a high-quality effect. The F-1 includes a self-cleaning function that prolongs the life of the heating elements.
This fazer is controllable via DMX 512, a handheld remote and a timer, with wireless options available. It has a tank capacity of 2.4 liters and a fluid consumption of 8.5 mL/min. Finally, it is equipped with Neutrik powerCON connections for power and 3- and 5-pin XLR for DMX control.
User benefits
Areas of use
Technical characteristics
| Rated voltage | 220 - 240 VAC 50/60 Hz 3.5 A |
| Rated power | 800 W |
| Warm-up time | 4.5 min (approx) |
| Fluid consumption | 8.5 mL/min |
| Fluid tank capacity | 2.4 L |
| Operating time | 4.5 h at max. output |
| Ambient temp. range | 0 to 40 ℃ |
| Control | manual, timer, DMX 512, wireless (optional), Wireless DMX (optional) |
| DMX channels | 2 channels |
| Connection | Neutrik powerCON (power), XLR 3 and 5-pin (DMX) |
| Optional accessories | TIMO-W-DMX-PCBR wireless DMX, WTR-10 wireless remote, TIMO-WTR-40 wireless DMX and remote |
| Dimensions (L x W x H) | 61.8 x 27.5 x 38.2 cm |
| Weight | 14.1 kg |
