PRO-SDI2H - 12G‑SDI to HDMI converter, re‑clocked SDI loop‑through, dual HDMI outputs, 4K UHD support, optional 1080p downscaling for local monitoring

CHF 960,83

prices may have variations due to the currency fluctuation

SKU: PRO-SDI2H

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.mom. Our office will contact you as soon as possible.

12G‑SDI to HDMI converter, re‑clocked SDI loop‑through, dual HDMI outputs, 4K UHD support, optional 1080p downscaling for local monitoring

PRO-SDI2H is an SDI to HDMI converter that lets you display SD, HD, 3G, and 12G-SDI signals on HDMI monitors, simplifying SDI signal distribution and extension in broadcast and AV environments.

With L/R analog audio outputs and 12G SDI loop-through, you can simultaneously monitor content on SDI and HDMI displays. It supports resolutions up to 4K UHD (12 Gbps, 4K @ 50/60 Hz 4:2:2 8-bit) and includes 1080p downscaling for cost-effective local monitors.

It is controlled via front panel controls and fully compliant with all major SMPTE standards.

Main features

Complies with HDMI 2.0 and DVI 1.0 standards
Features 1 SDI video input
Offers 3 mirrored outputs, including 2 HDMI and 1 12G-SDI, as well as an analog stereo audio output
Supports digital video signals up to 4K UHD at 12 Gbps with 4K@50/60 Hz 4:2:2 8-bit resolution
The SDI input is compliant with SMPTE ST 292-1 Level A, ST 425-1, ST 2081-10, and ST 2082-10 standards
The SDI loop-through output is reclocked to ensure signal stability
The SDI signal extension distance varies by format: 80 m for 12G-SDI, 100 m for 6G-SDI, 200 m for 3G-SDI and 260 m for HD-SDI
4K sources can be downconverted to 1080p when sent to HDMI outputs
Supports up to 8 channels of LPCM audio pass-through

User benefits

Multiple outputs allow simultaneous monitoring of HDMI and SDI signals
Automatic downscaling to 1080p allows the use of inexpensive monitors
Ensures greater signal stability with reclocked SDI loop-through
Easily integrates into SDI infrastructures up to 12G
Extends SDI signals over long distances without additional converters

Areas of use

Broadcast control rooms and live production systems
Local monitoring in television studios and OB vans
Integration into professional SDI systems requiring HDMI output
Live events, rentals, and AV installations
SDI-to-HDMI conversion for technical monitors, preview and multiview

Technical characteristics

Inputs:
- 1 × BNC (1 × SDI HD‑SDI/3G‑SDI/6G‑SDI/12G‑SDI)
Outputs:
- 1 × BNC (1 × SDI HD‑SDI/3G‑SDI/6G‑SDI/12G‑SDI)
- 1 × HDMI (1 × HDMI uncompressed AV and data)
- 1 × 3.5 mm stereo mini‑jack (1 × analogue stereo L/R)
PSU: 5 V_DC / 2.6 A
Dimensions (W × H × D): 12.8 × 2.5 × 7.5 cm
Net weight: 0.34 kg

CHF 960,83

prices may have variations due to the currency fluctuation

SKU: PRO-SDI2H

Ask for availability To find out the price dedicated to you, follow the link and register on audioeffetti.mom. Our office will contact you as soon as possible.

PRO-SDI2H - 12G‑SDI to HDMI converter, re‑clocked SDI loop‑through, dual HDMI outputs, 4K UHD support, optional 1080p downscaling for local monitoring

CHF 960,83

12G‑SDI to HDMI converter, re‑clocked SDI loop‑through, dual HDMI outputs, 4K UHD support, optional 1080p downscaling for local monitoring

CHF 960,83

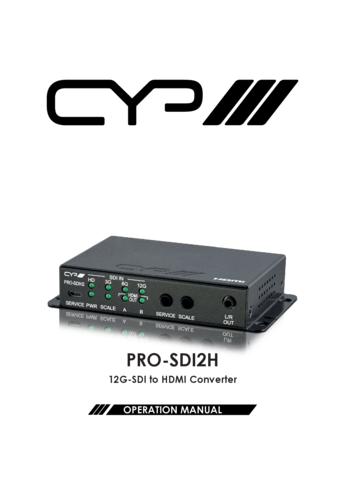

Download
