RTI PIKO

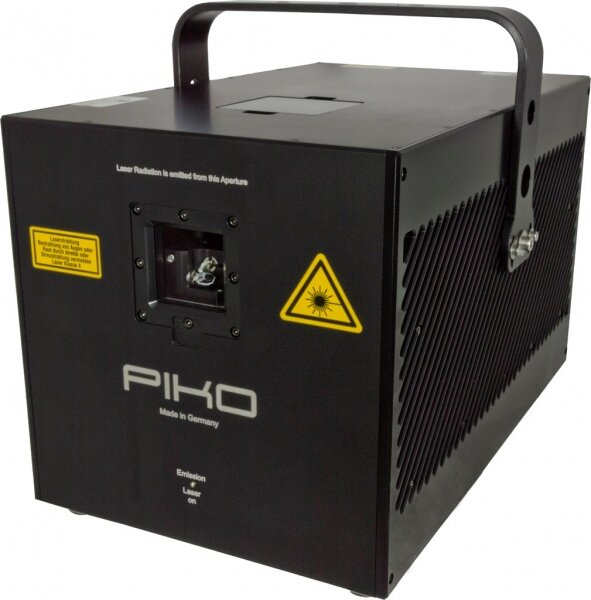

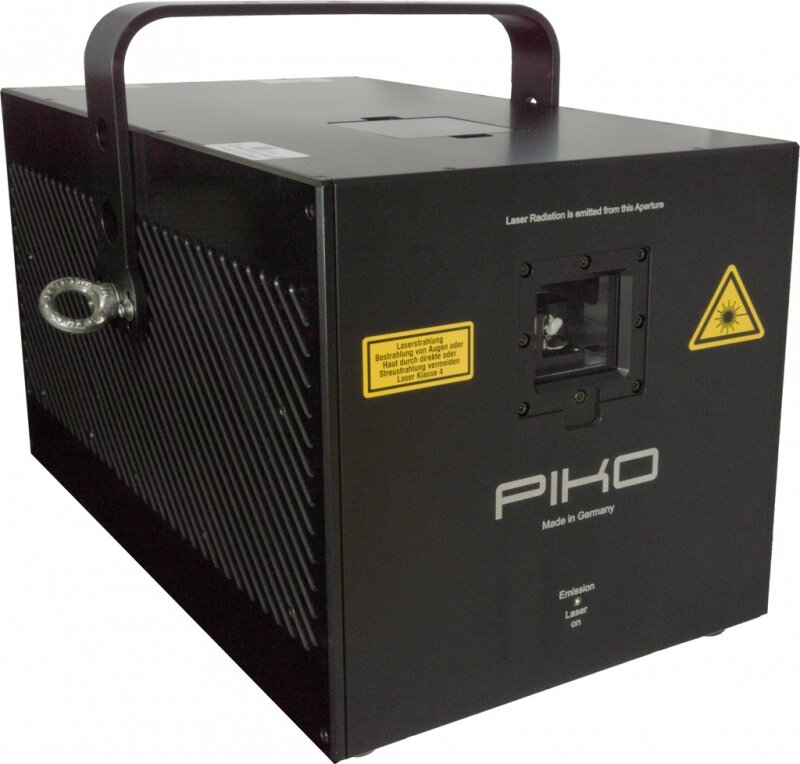

Ray Technologies presents their new RTI PIKO RGB 20 with a high precision diode module as substitution for the OPSL green laser source. This change in technology for the green colour spectrum became possible due to new diode arrays that have been developed by RTI’s R&D in Valley, next to Munich, Germany.The homogenous beam profile of the PIKO RGB 20 even fits small 4mm scanner mirrors, which results in high scanner performance, as the inertia of the scanners is kept very low. The CT-6210H scanners can do 60kpps @ 8° and still do 35kpps at their maximum scan angle of 80°. Besides the small beam diameter, the RTI PIKO RGB 20 maintains a very low divergence of 1.0mrad, so the small beam diameter is not negatively impacting the divergence at all.
The RTI PIKO RGB 20 laser systems are especially designed and tailored for high professional applications. The colour balance of 5.8W/638nm, 6.2W/520nm, 6.0W/450nm and 4.0W/462nm provides excellent white balance at extremely high power. Colour balance, scanner settings and various safety features can easily be configured through a browser interface, so it is no longer necessary to directly access the laser system for making adjustments.
The full diode setup not only leads to a uniform laser source technology in the RTI PIKO RGB 20, but it also leads to price reductions compared to systems with OPSL green.
The RTI PIKO RGB 20 can be obtained through the Laserworld Group, as Ray Technologies is a Laserworld company.
Info: www.laserworld.it
